Laser Cutting & CNC Bending Expert Profile Cutter, Dealers in Iron Goods

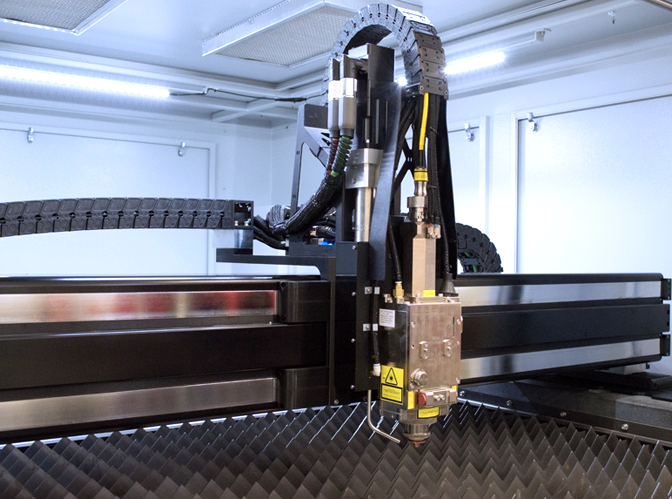

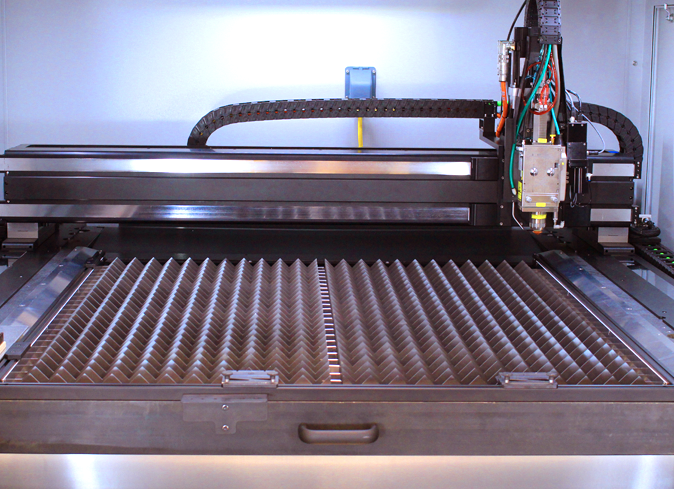

Laser Cutting

We are specialized as total solutions provider in the area of all types of Laser cutting.We have CNC Laser Cutting machine 5' X 10' X 18MM thick capacity, CNC Turret Punch & CNC Bending Machine, where we can serve OEM customers for job work / assemblies of fabricated components.

Laser cutting machines allow metal fabricators to create high-quality parts that require very little, if any, finishing work. As the high-powered laser is cutting, excess material is either melts, burns or vaporizes away. A high pressure jet of gas also blows away any debris, resulting in a highly finished surface cut.

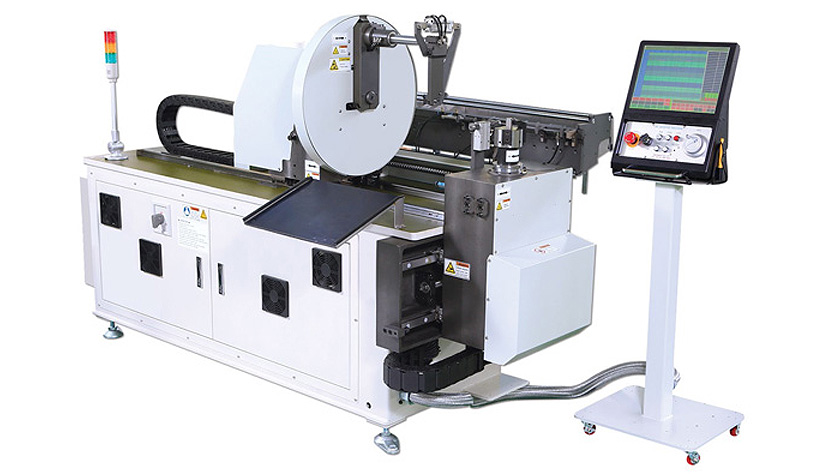

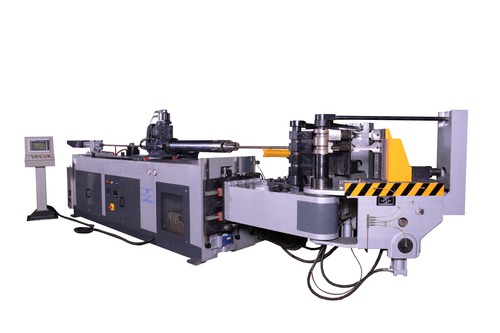

CNC Bending

Our reputation in the market is largely attributable for providing the high quality CNC bending Cutting Services to our clients. With very few of its kind, our servo CNC bending facility is state of the art and latest to provide accurate dimensions. We can bend sheets up to 3 meter length and up to 4 mm thickness.

Computer numerically controlled (CNC) bending is a manufacturing process that is carried out by CNC press brakes (also known as CNC brake presses). These machines can bend sheet metal work from just a few mm across to sections many metres long on the largest industrial machines.

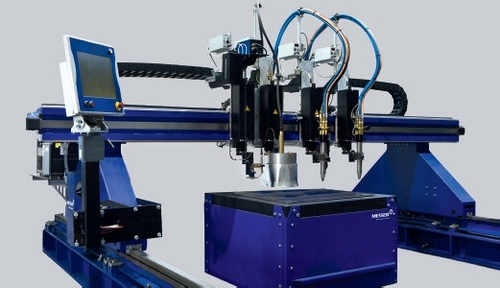

CNC Profile Cutting

CNC Profile Cutting Machine developed by Maharashtra Profile as SuperXL series which is suitable for many industries for metal plate cutting. This machine is rigid gantry type design Economical level solution for production of Oxy fuel & Plasma cutting process

• This machine driven system with heavy duty track for steady and precision cutting.

• Longitudinal and transverse energy feed drag-chains, hose/ cable clean and move smooth.

• Direct rack and pinion of 1.5 Module in both axes for accurate and repeatable motion.

• Plasma Torch height sensing system with rapid initial height sensing.

• High torque Stepper motors 3.4nm, 6.8nm or 8.7nm capacity.

• CNC Controllers of 7” or 10.4” screen allows entering the program directly on the system or transfer files through USB.

• Gantry Effective width available in 1.5, 2.0 & 2.5 Meter in standard size. Effective Length available from 3 Meter – 12 Meter.

• Variety of Nesting software available for programming.

• Rapid Speed 10mm – 6000mm/ min, Cutting speed 10mm -2000mm/min.

• Maximum two torch stations available as per customer requirement.

• LM Guides for X axis movement for smooth & precision driving.

• Suitable for Oxy Fuel & Air Plasma cutting application.

• Oxy fuel cutting thickness 5mm – 150mm. Plasma cutting thickness as per selected Air Plasma Model.

Users can select the units which has several optional functions such as automatic ignition, powder spraying lineation, cutting back, dynamic graphic tracking shows and so on. It realizes the whole cutting process automatic control.
